CE-IA-UVWn type micro-motion narrow platform
Function Description: Enables fine adjustment on horizontal X-Y axes and rotary R-axis;
Product Features: High rigidity, high precision, flat;
Series: Stroke covers ±5~±25 mm, ±3~±8° (around the center point).
- Commodity name： CE-IA-UVWn type micro-motion narrow platform
- Description
-

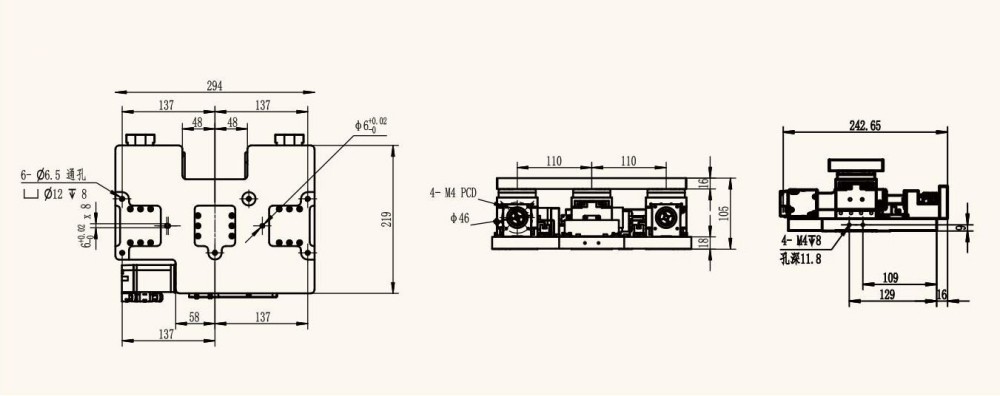

Dimensional Diagram
CE-IA-UVWn Type Micro-Motion Narrow Stage Serial Number Module Function Points Key Parameters/Configuration 1 System Parameters Table Size - 2 Actuation Stroke/Angle ±5~±25mm ±3°~±8° 3 Actuation Speed 5mm/s~20mm/s 5°/s~20°/s 4 Repeat Positioning Accuracy ±1um ±0.005° 5 Return Error ±3um~±8um 0.025° 6 Planarity 10um~20um 7 Load 5~150kg 8 Typical Configuration Screw C0~C5 9 Guide Rail Anti-Creep Cross Roller Guide Rail 10 Sensor Limit Switch/Magnetic Scale 11 Motor AC Servo/Stepper Servo/Stepper
