CE-IA-XYθ type micro-motion platform
Function Description: Enables fine adjustment on horizontal X-Y axes and rotary R-axis;
Product Features: High rigidity, high precision;
Series: Stroke covers ±5~±30 mm, ±5~±15°.
- Commodity name： CE-IA-XYθ type micro-motion platform
- Description
-

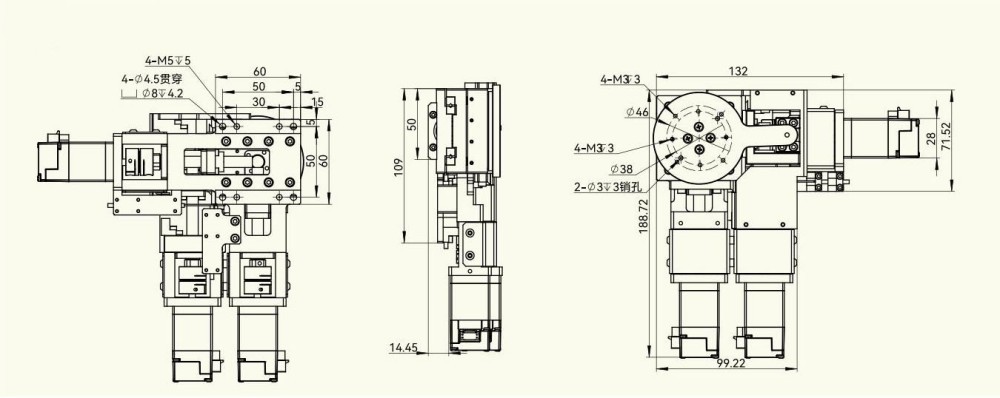

Dimensional Diagram
CE-IA-XYθ Type Micro-motion Platform Serial Number Module Function Point Key Parameters/Configuration 1 System Parameters Table Size - 2 Actuation Stroke/Angle ±5~±30mm ±5~±15° 3 Actuation Speed 5mm/s~20mm/s 10%/s~30°/s 4 Repeatability ±1um ±0.005° 5 Backlash Error ±3um~±8um 0.025° 6 Planarity 10um~20um 7 Load 2~30kg 8 Typical Configuration Screw C0~C5 9 Guide Rail Anti-Creep Cross Roller Guide Rail 10 Sensor Limit Switch/Magnetic Scale 11 Motor AC Servo/Stepper Servo/Stepper
