CMCS-mini series
- Commodity name： CMCS-mini series
- Description
-
CMCS-mini Series Rated Parameter Table Model Speed Ratio Input
2000r/min
Rated TorqueStart/Stop
Permitted during
Peak TorqueAverage Load
Torque Capacity
Maximum Allowable ValueInstantaneous Allowable
Maximum TorqueMaximum Allowable
Input SpeedAllowable Average
Input SpeedBacklash Design
Lifespan/ / Nm Nm Nm Nm r/min r/min Arcsec Hour 5 30 0.21 0.45 0.35 0.85 8000 3500 ≤30 12000 50 0.35 0.8 0.5 1.65 100 0.55 1.25 0.88 2.5 8 30 0.8 1.66 1.25 3 8000 3500 ≤30 12000 50 1.65 3.1 2.1 6.1 100 2.25 4.35 3 8.2 11 30 2 4.1 3.1 8 8000 3500 ≤30 12000 50 3.1 7.8 5 15 100 4.5 10 8.2 22 14 30 3.8 8.5 6.5 16 8000 3500 ≤30 12000 50 5 17 6.5 32 80 7.3 21 10 43 100 7.3 25 10 49

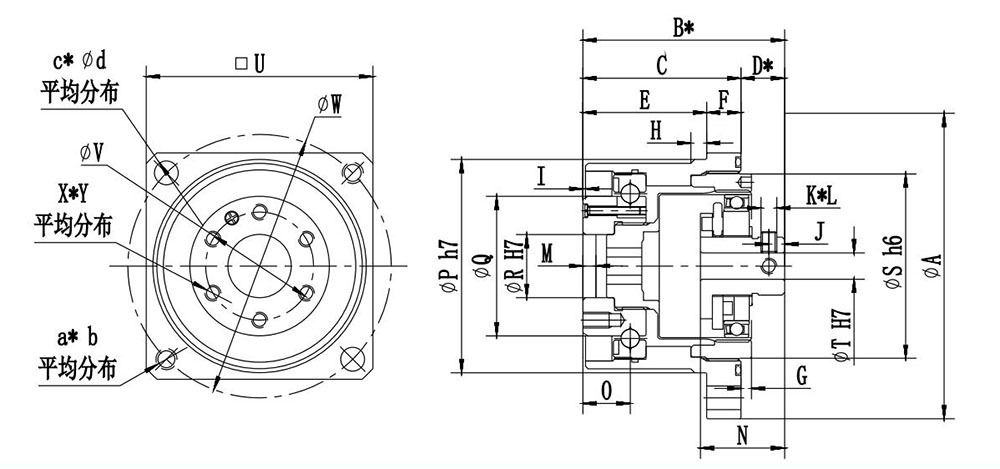

CMCS-mini-XX-XX Size Table Model Symbol 5 8 11 14 ØA 29 43.5 58 73 B* 20.5 31 38.3 45 C 15.7 24.5 30 37.5 D* 4.80 -0.2 6.50 -0.3 8.30 -0.7 7.50 -0.8 E 12.7 19 23.5 28 F 3 5.5 6.5 9.5 G 1.3 1.5 2 2.5 H 2 3 3 5 0.5 0.5 0.5 1.5 J 2 2 3 2.5 K 2 2 2 2 L M2*3 M2*3 M3*4 M3*4 M 1.7 2.2 2.5 3.5 N 6 12 16 17.6 0 4.85 7.3 9 11.4 ØP h7 20..5 31 40.5 51 Ø0 13 20 26.5 33.5 ØR H7 5 9 12 15 ØS h6 17 26 35 43 ØT H7 3 3 5 6 ØU 22±0.42 32±0.46 43±0.5 53±0.5 ØV 9.8 15.5 20.5 25.5 ØW 25 37.5 50 62 X 3 4 6 6 Y M2*3 M3*4 M3*5 M4*6 a 2 2 2 2 b M2 M3 M4 M5 c 2 2 2 2 Ød 2.3 3.4 4.5 5.5
