CE-HM-R83 series
- Commodity name： CE-HM-R83 series
- Description
-
CE-HM-R83 Series Module Technical Specifications Serial Number Module Configuration Output Speed
(RPM)Rated Torque
(Nm)Peak Torque
(Nm)Backlash
(Arcsec)1 Mechanical Characteristics 51:1 60 18 49 30 2 101:1 30 35 98 30 3 161:1 18 57 156 30 4 Electrical Characteristics Rated Voltage
(V)Rated Power
(W)Rated Speed
(RPM)Rated Current

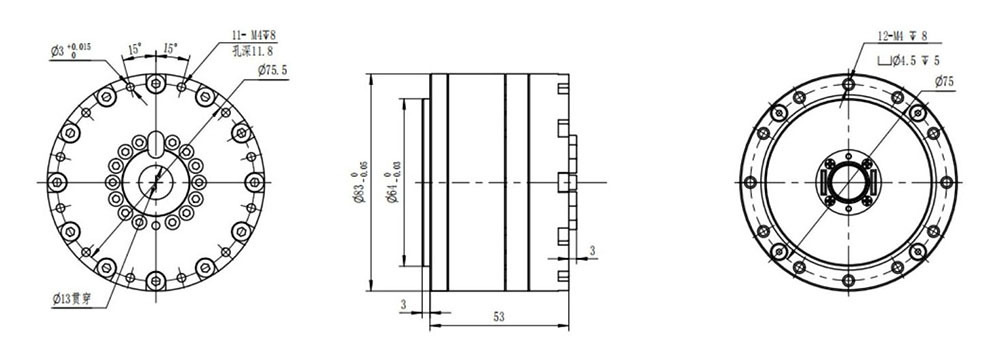

(A)Peak Current
(A)5 48 180 3500 4.5 14 6 Encoder Dual encoder, single-turn absolute value: 19-bit single-turn 7 Driver Interface: EtherCAT/CAN, Current loop: 50KHz, Speed loop: 10KHz 8 Overall Size R83*59mm 9 Overall Weight 1.1kg 10 Typical Applications Shoulder joint, elbow joint, knee joint
