CE-HM-R120-Pro Series
- Commodity name： CE-HM-R120-Pro Series
- Description
-
CE-HM-R120-Pro Series Module Technical Specifications Serial Number Module Configuration Output Speed
(RPM)Rated Torque
(Nm)Peak Torque
(Nm)Backlash
(Arcsec)1 Mechanical Characteristics 300:1 10.7 410 1055 15 2 Electrical Characteristics Rated Voltage
(V)Rated Power
(W)Rated Speed
(RPM)Rated Current
(A)Peak Current

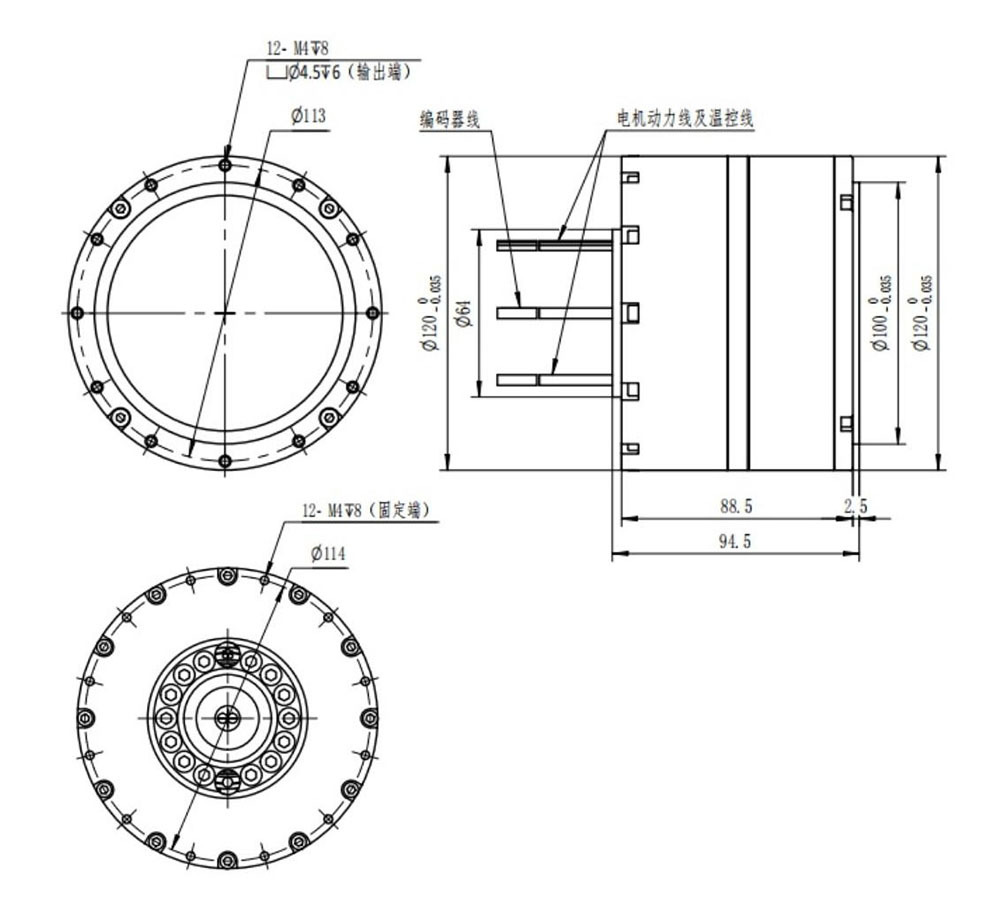

(A)3 48 732 3500 15 45 4 Encoder Dual encoder, single-turn absolute value: 19-bit single-turn 5 Driver Interface: EtherCAT/CAN, Current loop: 50KHz, Speed loop: 10KHz 6 Overall Size R120*94.5mm, center hole φ25mm 7 Overall Weight 3.3kg 8 Typical Applications Hip joint, waist
