Upper Limb Platform on CE-IA-HR-UP
- Commodity name： Upper Limb Platform on CE-IA-HR-UP
- Description
-

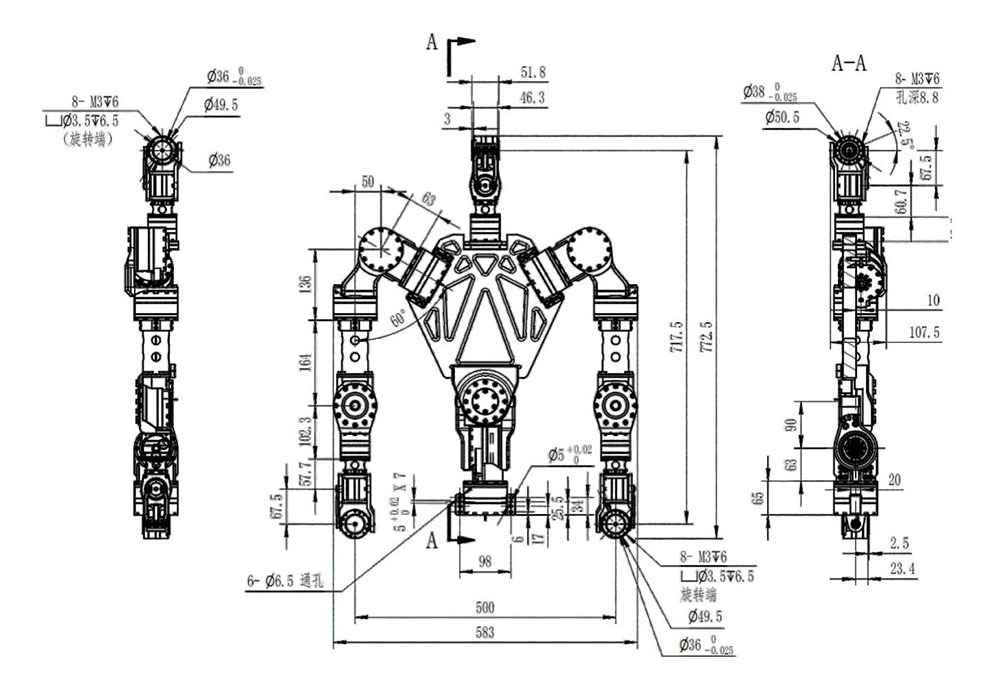

CE-HM-HR-UP Upper Limb Platform Technical Specifications Serial Number Module Parameter 1 Size 772.5*583*107.5mm 2 Degrees of Freedom 20DOF: Head: 3DOF, Single Arm: 7DOF, Waist: 3DOF 3 End Load Single Arm Load: 8kg 4 Arm Length 528mm (excluding gripper) 5 Rated Voltage 48V 6 Power Consumption Rated Power: 1KW; Peak Power: 3KW 7 Driver Current Loop: 50KHz, Speed Loop: 10KHz 8 Communication Interface EtherCAT/CAN 9 Overall Weight 25kg
